Intercom

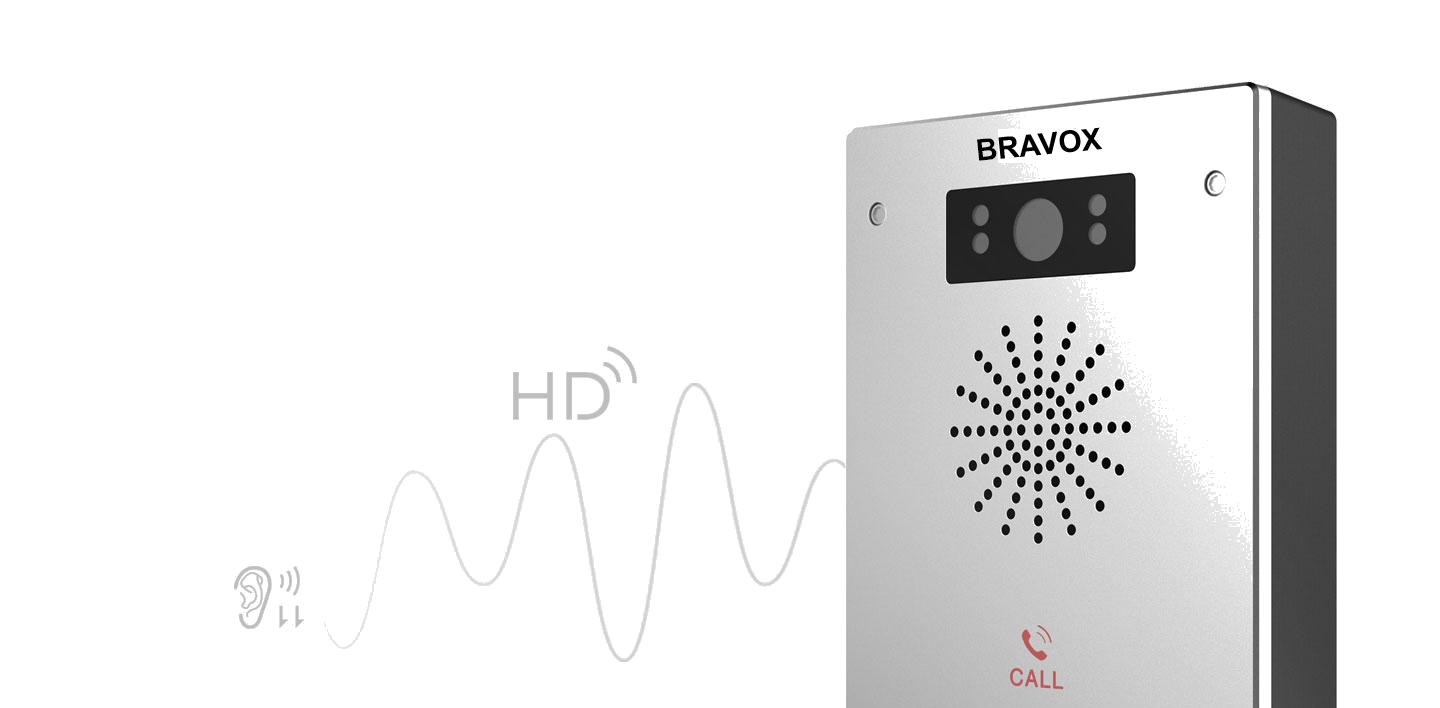

HD Audio

Build-in 3W speaker with high HD audio quality and nice background noise reduction

HD Video

Press the “Call” button to make a call with full duplex video. Provide you the infrared night vision with build-in 720P HD camera

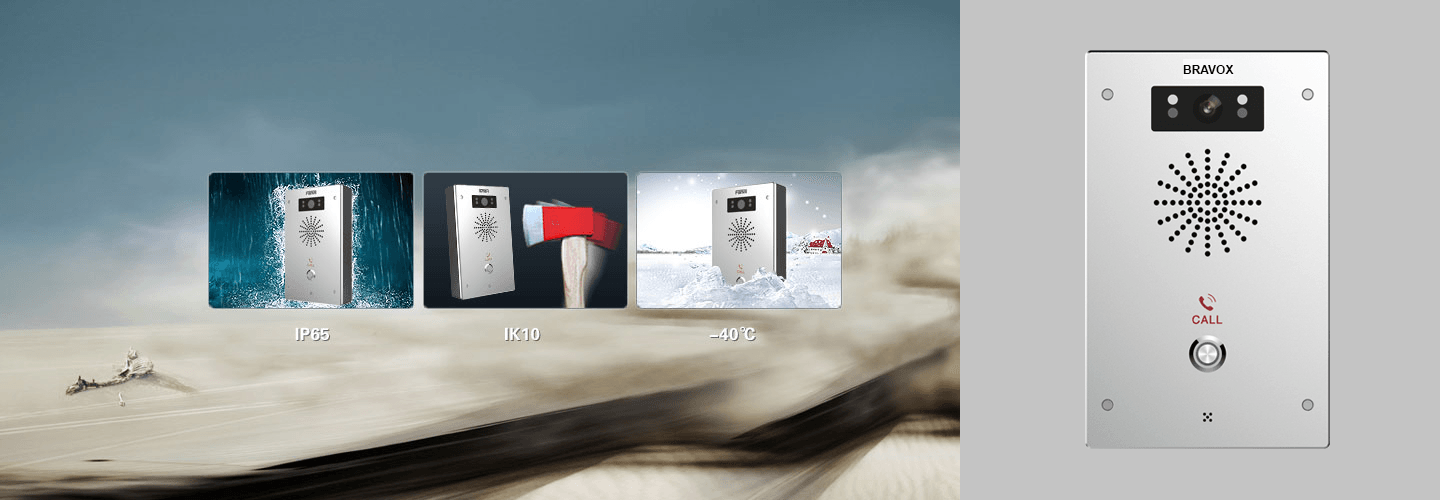

Multi-Protection Design

Featuring the waterproof and dustproof grade IP65, the anti-collision
standard IK10 and the wide temperature range from -40℃ to 70℃,
can be applied in different kinds of outdoor environment

Ports for Many Other Usage

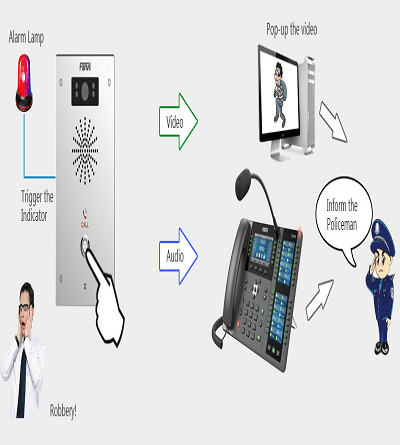

Alarm Linkage

It can trigger the record of camera video or the alarm indicator with the short output port

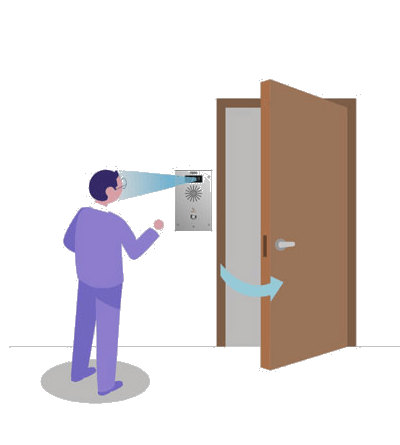

Access Control

It can help open the door remotely by connecting to the electric lock with the short-circuit input port

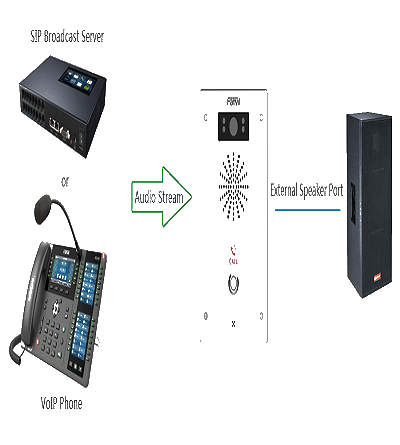

External Active Speaker

It can connect to speaker by the audio output port to play voice message or music

Model

  • Type
  • SIP lines
  • DSS Key
  • POE
  • IP Rating
  • IK Rating
  • ONVIF Support
  • Video Cam
  • Temperature

BRX-DA10/DA10V

  • Audio/Video(V model)
  • 2
  • Yes
  • No
  • IP54
  • No
  • No
  • Yes, V model only
  • N/A

BRX-DA12-01P

  • Audio
  • 2
  • Yes
  • Yes
  • IP65
  • IK10
  • No
  • No
  • -40 – +70

BRX-DA16V

  • Video
  • 2
  • Yes
  • No
  • IP65
  • IK10
  • Yes
  • H.264
  • -40 – +70

BRX-DA18S

  • Video
  • 2
  • Yes
  • No
  • IP65
  • IK10
  • No
  • HD
  • -40 – +70
