Powered By Intel Quad Core Processor

It will ensure you the most reliable, stable and fast experience that you can get out of it

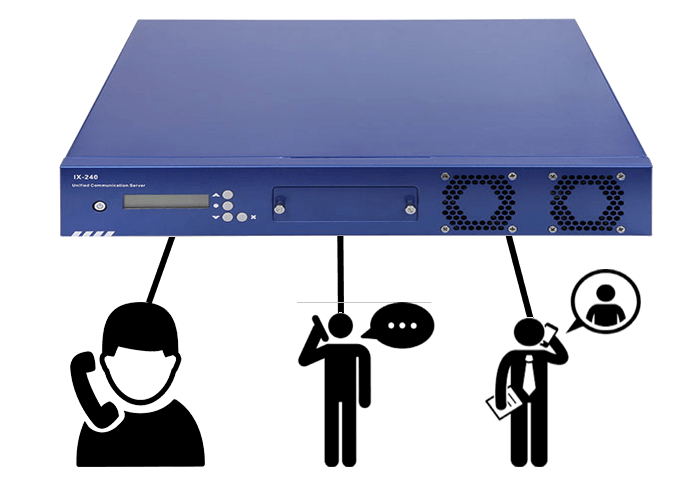

Supports Up To 600 Concurrent Calls

and 1000 Users

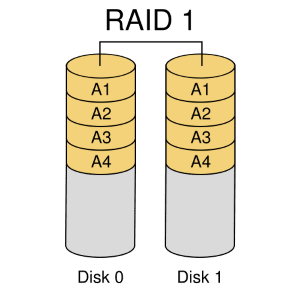

Optional Hardware RAID 1 Supported

Provides better data backup for your system. Users can see the status of the storage devices and be alerted when HDD is crashed, then simple replace a backup HDD ASAP

Build-In Uninterruptible Power Supply

It will be a risk-free solution that keeps your system and data away from damage or lost caused by an unexpected power failure

Easy Integration of HD Voice

Model



  • CPU
  • RAM
  • Storage
  • Max Analog Ports
  • Max BRI Ports
  • Max E1/T1/J1 Ports
  • FXO Port
  • FXS Port
  • Ethernet Ports
  • PCI-E
  • Display
  • LCD Display
  • USB
  • Power Supply
  • UPS
  • RAID
  • Dimension
  • Net Weight
  • Full Specifications + Features

BRX-PBX100



  • 1.6GHz
  • 2GB
  • 16GB SSD
  • N/A
  • 4
  • 1
  • 8
  • 8
  • N/A
  • 1
  • No
  • No
  • 2
  • 100/240VAC
  • No
  • No
  • 181mm x 158mm x 56mm
  • 1235g
  • Download

BRX-PBX140



  • 1.83GHz Intel(R) Celeron(R) N2930
  • 2GB DDR3L 1333
  • 1 SATA slot, 1 mSATA socket
  • N/A
  • N/A
  • N/A
  • N/A
  • N/A
  • 2
  • 2 + 1 mini
  • VGA
  • No
  • 2x 2.0 ports
  • 100-240VAC
  • Yes (optional)
  • Yes (optional)
  • 440mm x 45mm x 300mm
  • 5200g

BRX-PBX240



  • 1.83GHz Intel(R) Celeron(R) N2930
  • 8GB DDR3L 1333
  • MSATA SSD+2.5/3.5 inch SATA HDD
  • 48
  • 8
  • 8
  • N/A
  • N/A
  • N/A
  • 1 mini
  • VGA
  • Yes
  • 2
  • 100-240VAC
  • Yes (optional)
  • Yes (optional)
  • 440mm x 66.7mm x 370mm
  • 3750g
