Access Control – Control Panel

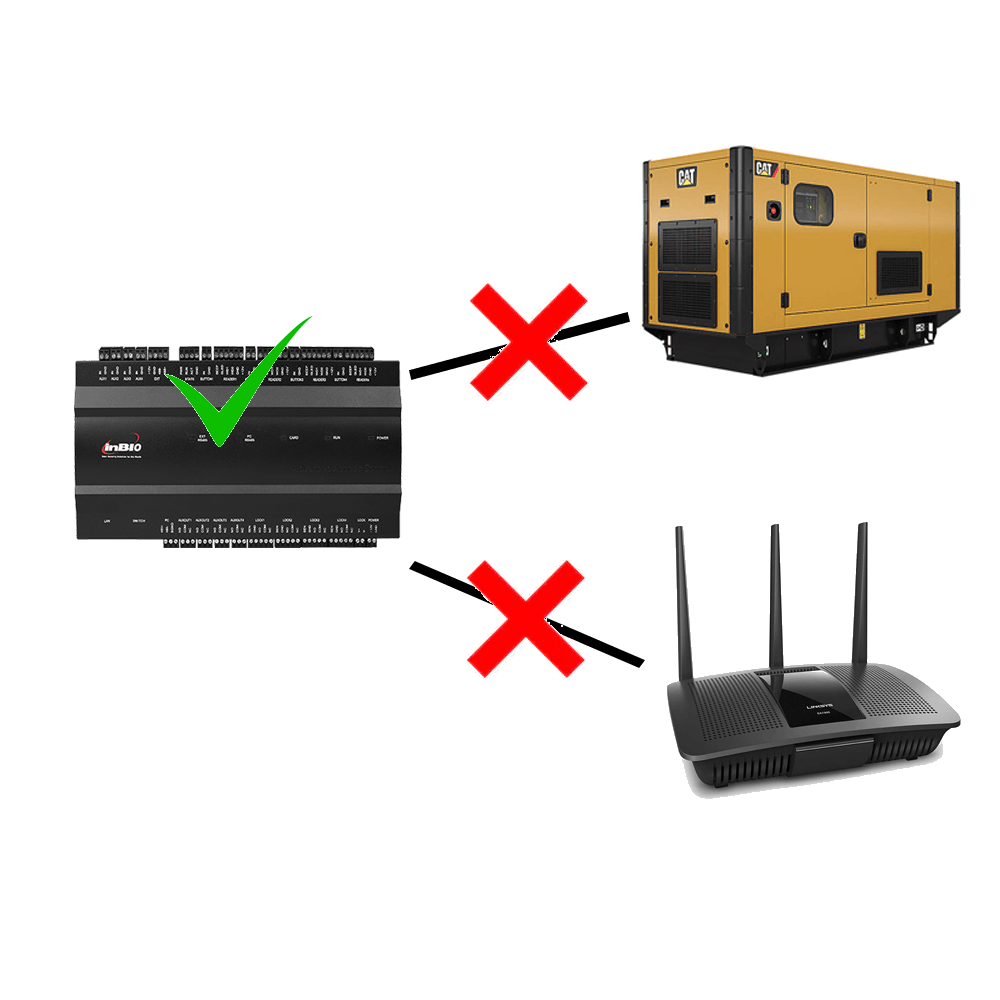

Always In Service
Data is preserved if power is lost. Controller continues to operate if network connection is interrupted
All Round Security
It has all the security features build in which includes alarms, intrusion detection, total lockdown, extra locking device and gate controllers
Advance Access Control Built-In
Anti-Passback, First-Card Opening, Multi-Card, Opening, Duress Password Entry, and Auxilary input/output linkages are built into controller firmware

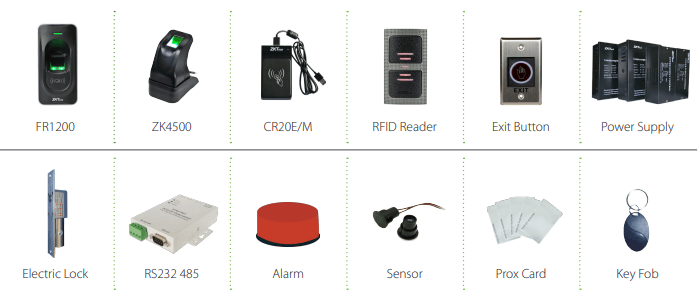

Multiple Accessories Supported
Model
3 versions
- No. of Doors
- No. of Readers
- Types of Readers Supported
- No. of Inputs
- No. of Outputs
- User Capacity
- Fingerprint Capacity
- Logs
- Weight
- Communication
- Browsers
- Enclosure
- Mounting
- Power Supply
- Dimensions (LxHxW)

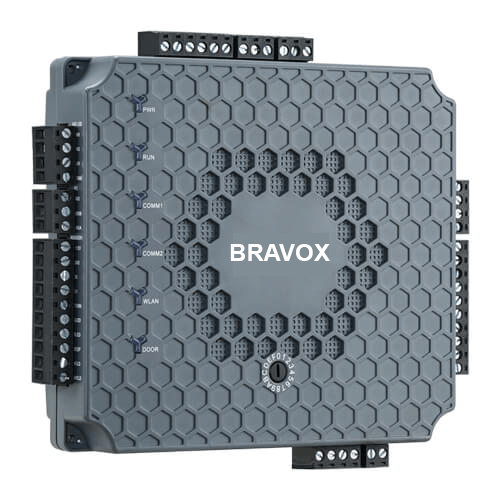

Atlas
160/260/460
- 1/2/4
- 2/4/8
- Fingerprint,RS485, Wiegand,OSDP
- 4/6/10
- 2/3/5
- 5000
- 5000
- 10,000
- 9/10/10lbs
- IP,Wi-Fi,OSDP
- Chrome,Edge
- Aluminum
- Wall Mount
- 12V DC, 3A POE
- 380*80*280mm

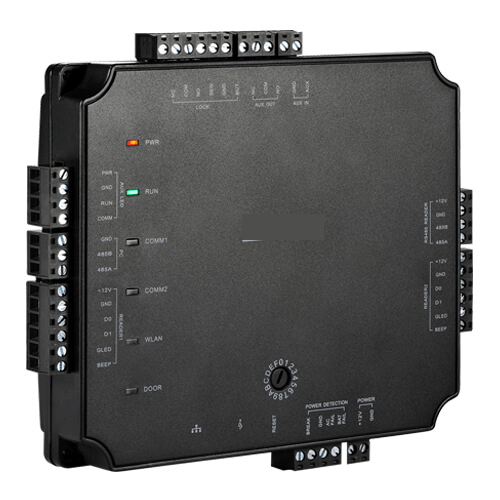

Atlas
100/200/400
- 1/2/4
- 2/4/8
- Fingerprint,RS485, Wiegand,OSDP
- 3/5/9
- 2/3/5
- 5000
- N/A
- 10,000
- 9/10/10lbs
- IP,Wi-Fi,OSDP
- Chrome,Edge
- Aluminum
- Wall Mount
- 12C DC,3A POE
- 380*80*280mm

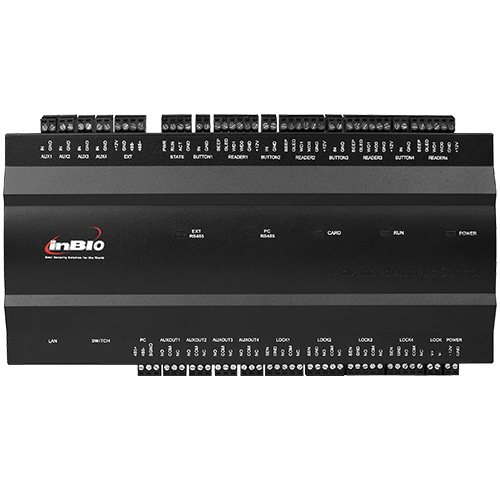

InBio
160/260/460
- 1/2/4
- 4/8/12
- 26-bit Wiegand,
and RS485 - 3/6/12
- 2/4/8
- N/A
- 3000
- 100,000
- 7.9/7.9/8.1lbs
- TCP/IP,RS485,Wi-Fi
- N/A
- N/A
- N/A
- 9.6-14.4V DC
- 350*90*300mm

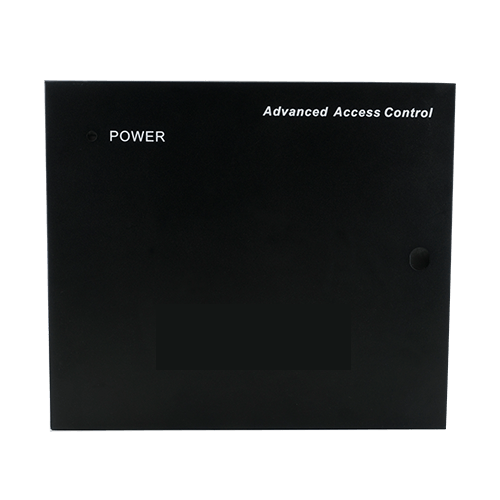

InBio
160 POE Bundle
- 1
- 2
- 26-bit Wiegand, Others upon request
- 2
- 2
- 30,000
- 3000
- N/A
- 7.38lbs
- RS485, Ethernet
- N/A
- N/A
- N/A
- 12V DC
- 305.2*89*298.4mm

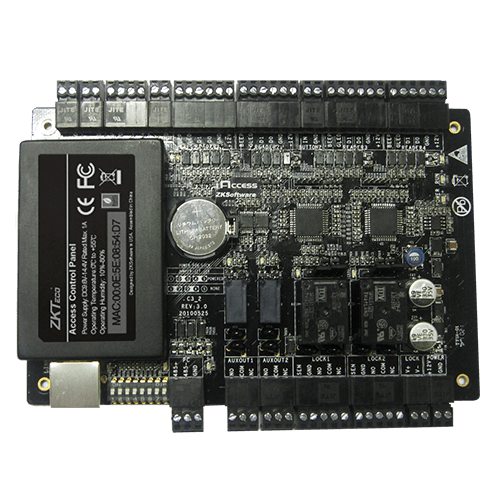

C3
100/200/400
- 1/2/4
- 2/4/4
- 26-bit Wiegand, others upon request
- 2/6/12
- 2/4/8
- N/A
- N/A
- 100,000
- 7.4/7.5/7.8lbs
- IP,RS485,Wi-Fi
- N/A
- Aluminium
- Wall Mount
- 12V DC,1.5A
- 380*80*280mm
