Access Control – Biometric

High Performance and Accuracy

Equipped with the latest fingerprint scanning technology, you can ensure fast and accurate scanning of fingerprint and fool proof

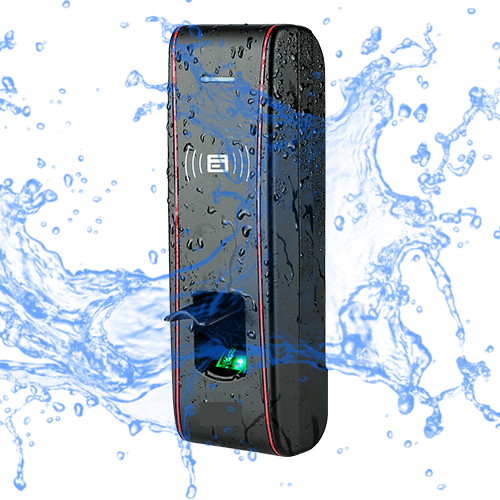

Water Resistant

Rugged structure for outdoor installation and extra durability

User Friendly GUI

It was designed for the simplicity of user navigation while packing a ton of full access control feature

Fast and Responsive

Equipped with the latest processor, user can ensure a smooth and lag free operation throughout

Model

Blank

  • Fingerprint Capacity
  • Card Capacity
  • Transaction Capacity
  • Sensor
  • Communication
  • Wiegand Signal
  • IP Rating
  • Display
  • Interface Styles
  • Standard Function
  • Optional Function
  • Power Supply
  • Operating Temperature
  • Operating Humidity
  • Dimension (WxDxH)

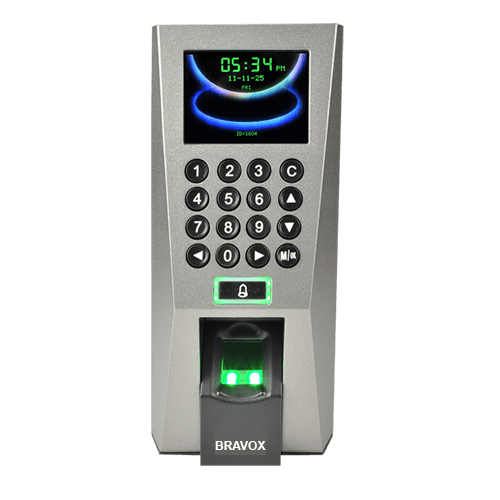

F18

  • 3000
  • 5000 (optional)
  • 30000
  • ZK Optical Sensor
  • RS232/485,IP,USB
  • Input and Output
  • N/A
  • TFT LCD color screen
  • common,matrix,magic
  • anti-passback
  • ID card,Mifare card
  • 12V DC, 3A
  • 0 – 45
  • 20% – 80%
  • 80*183*42mm

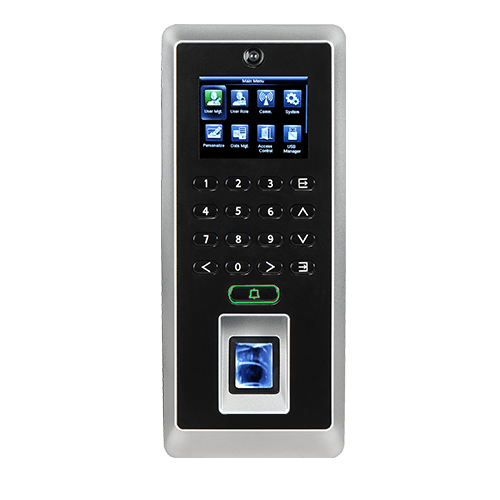

F21

  • 3000
  • 5000 (optional)
  • 100,000
  • SilkID Sensor
  • RS232/485,IP,USB
  • Input,output,SRB
  • N/A
  • 2.4″ TFT LCD
  • N/A
  • N/A
  • N/A
  • 12V DC, 3A
  • 0 – 45
  • 20% – 80%
  • N/A

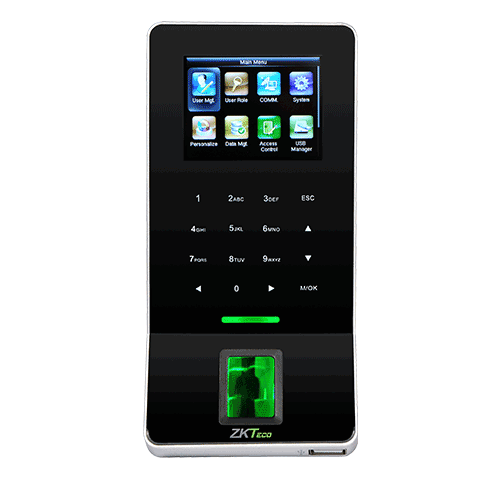

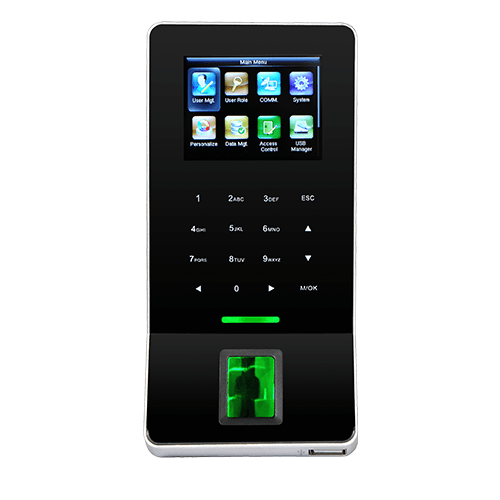

F22

  • 3000
  • 5000 (optional)
  • 30,000
  • BioID Sensor
  • RS232/485,IP,USB
  • Input,output
  • N/A
  • 2.4″ TFT LCD
  • N/A
  • N/A
  • N/A
  • 12V DC,3A
  • 0 – 45
  • 20% – 80%
  • 158.5*78.0*19.4mm

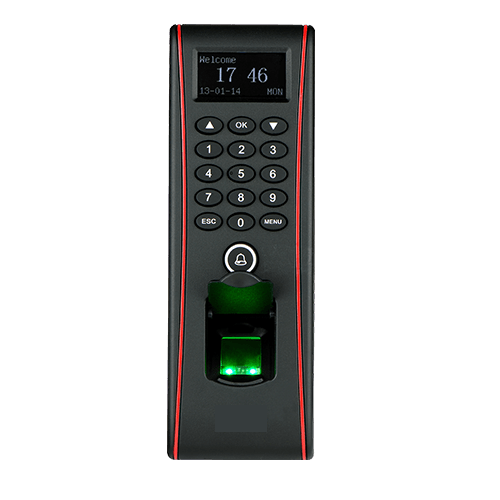

TF1700

  • 3000
  • 10,000
  • N/A
  • Infrared detection
  • IP,RS485,USB
  • Input and output
  • IP65
  • 128×64 OLED
  • Buzzer
  • N/A
  • N/A
  • 12V DC, 3A
  • -10 – +50
  • N/A
  • 62.5*185*41.5mm

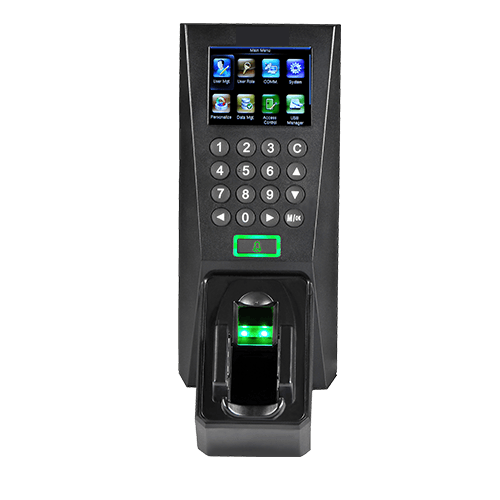

FV18

  • 1000
  • 5000 (optional)
  • 100,000
  • ZK Finger vein sensor
  • IP,USB
  • Input,output,SRB
  • N/A
  • 2.4″ TFT LCD
  • N/A
  • DST,record query
  • Webserver,doorbell
  • 12V DC, 3A
  • 0 – 45
  • 20% – 80%
  • 210.9*80.1*96mm

Model

Blank

  • Display
  • Fingerprint sensor
  • Communication
  • Fingerprint Capacity
  • Records Capacity
  • Wiegand Signal
  • Power Supply
  • Operating Temperature
  • Operating Humidity
  • Dimension (WxLxH)

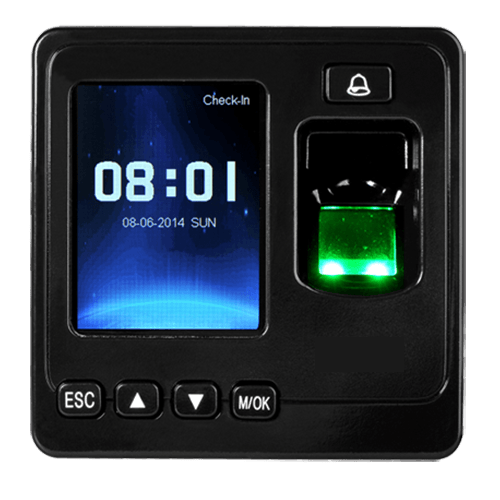

SF100

  • 2.4″ TFT LCD
  • ZK Optical
  • IP,RS485,USB
  • 1500
  • 80,000
  • Input,output
  • 12V DC, 3A
  • 0 – 45
  • 20% – 80%
  • 90*90*34.5mm

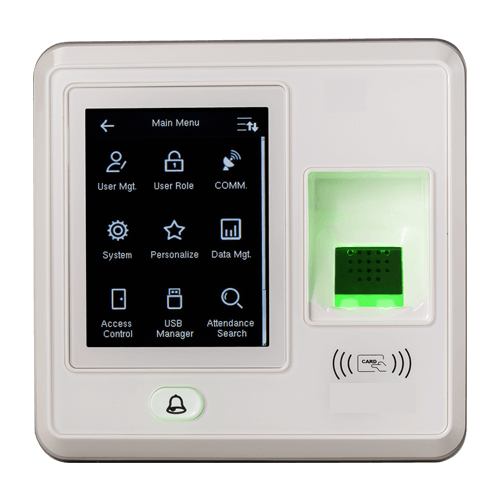

SF300

  • 2.8″ touch LCD
  • ZK Optical
  • IP,USB
  • 1500
  • 80,000
  • input,output
  • 12V DC,3A
  • 0 – 45
  • 20% – 80%
  • 105*105*34mm

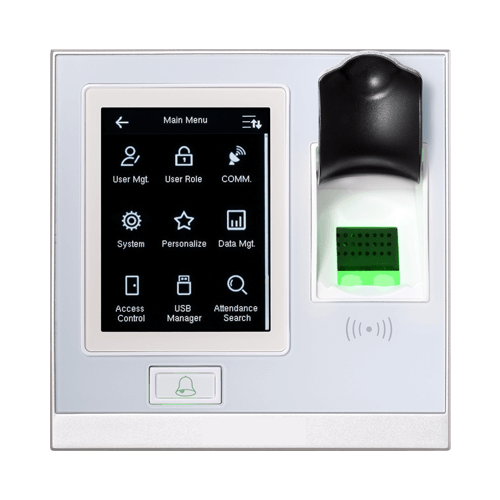

SF400

  • 2.8″ touch LCD
  • ZK Optical
  • IP,USB
  • 1500
  • 80,000
  • input,output
  • 12V DC,3A
  • 0 – 45
  • 20% – 80%
  • 105*105*32mm

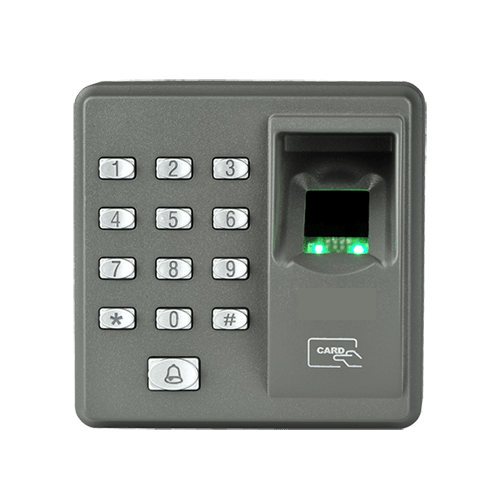

X7

  • No
  • ZK Optical
  • N/A
  • 500
  • N/A
  • N/A
  • N/A
  • 0 – 45
  • N/A
  • 88*88*33.6mm

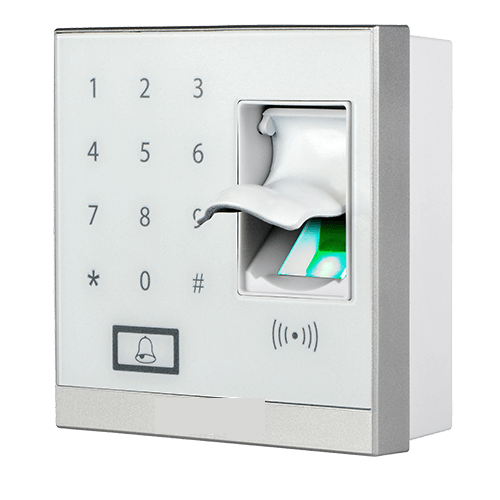

X8

  • No
  • SilkID
  • Bluetooth
  • 500
  • N/A
  • N/A
  • 12V DC,3A
  • 0 – 45
  • 20% – 80%
  • 101.5*101.5*37mm

Model

Blank

  • Display
  • Fingerprint Sensor
  • Communication
  • Fingerprint Capacity
  • Card Capacity
  • Log Capacity
  • RF Card
  • Authentication
  • Wiegand Signal
  • IP Rating
  • Operating Voltage
  • Temperature
  • Dimension (WxHxD)

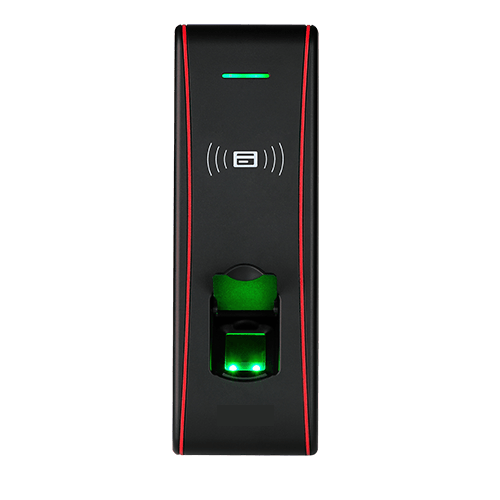

F16

  • No
  • ZK Optical
  • TCP/IP,RS485
  • 3000
  • 30,000
  • 100,000
  • EM
  • Finger/Card
  • input,output
  • IP65
  • 12V DC, 3A
  • 0 – 45
  • 62.5*185*41.5mm

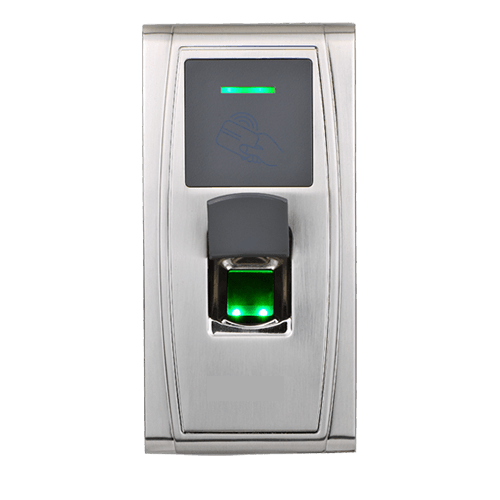

MA300

  • No
  • ZK Optical
  • IP,RS485,USB
  • 1500
  • 10,000
  • N/A
  • N/A
  • Finger/Card
  • input,output
  • IP65
  • 12C DC
  • -10 – +60
  • 73*148*34.5mm

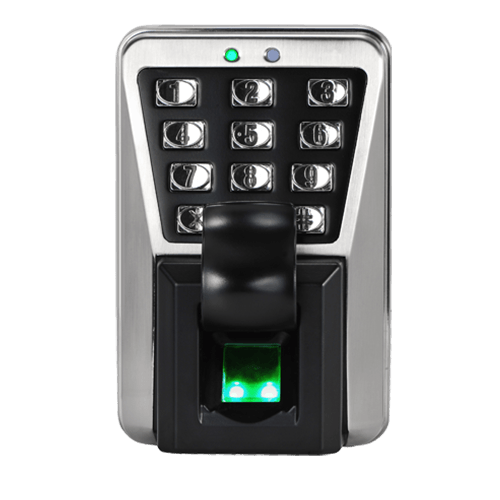

MA500

  • No
  • Protective optical
  • TCP/IP,RS485
  • 3000
  • 30,000
  • 100,000
  • EM
  • Fingerprint,PIN
  • output
  • IP65
  • 12V DC, 3A
  • 0 – 45
  • 83*127.5*74mm

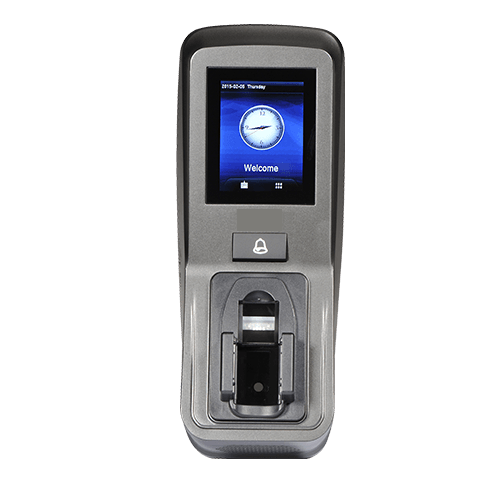

FV350

  • 2.8″ LCD
  • N/A
  • TCP/IP,RS485
  • 1000
  • N/A
  • N/A
  • EM,Mifare
  • Fingerprint/PIN
  • input,output
  • N/A
  • 12V DC,3A
  • -10 – +45
  • 232*91*117mm

800-H

  • 2.8″ TFT LCD
  • N/A
  • IP,RS485,USB
  • 4000
  • 10,000
  • N/A
  • N/A
  • Fingerprint/PIN
  • N/A
  • N/A
  • 12V DC, 3A
  • 20% – 80%
  • N/A
