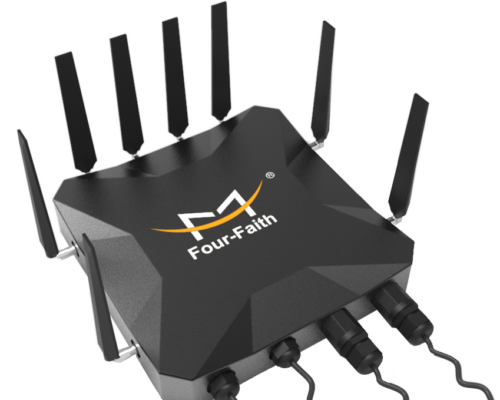

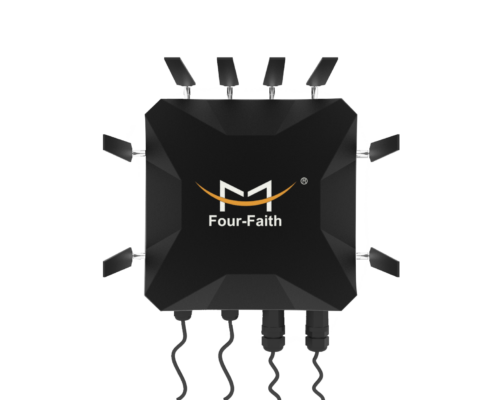

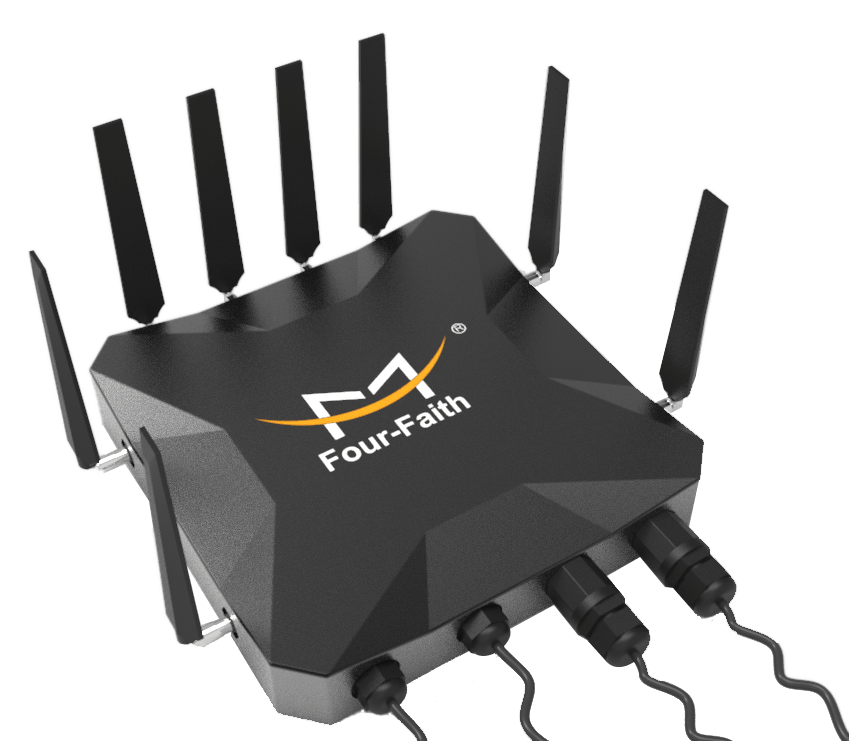

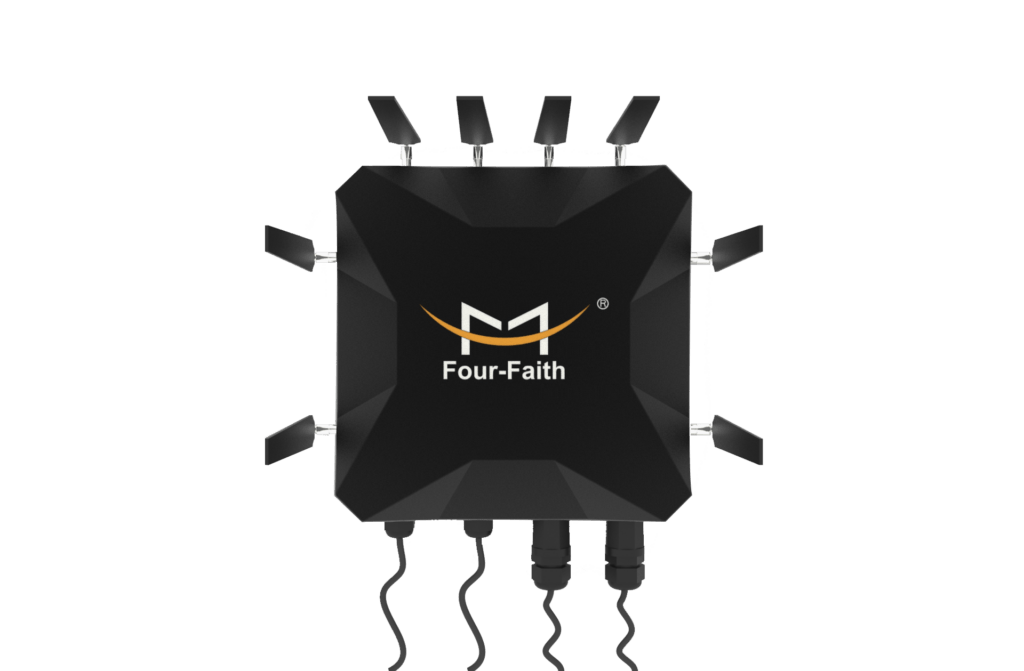

5G Industrial CPE F-NR200

5G Industrial CPE F-NR200

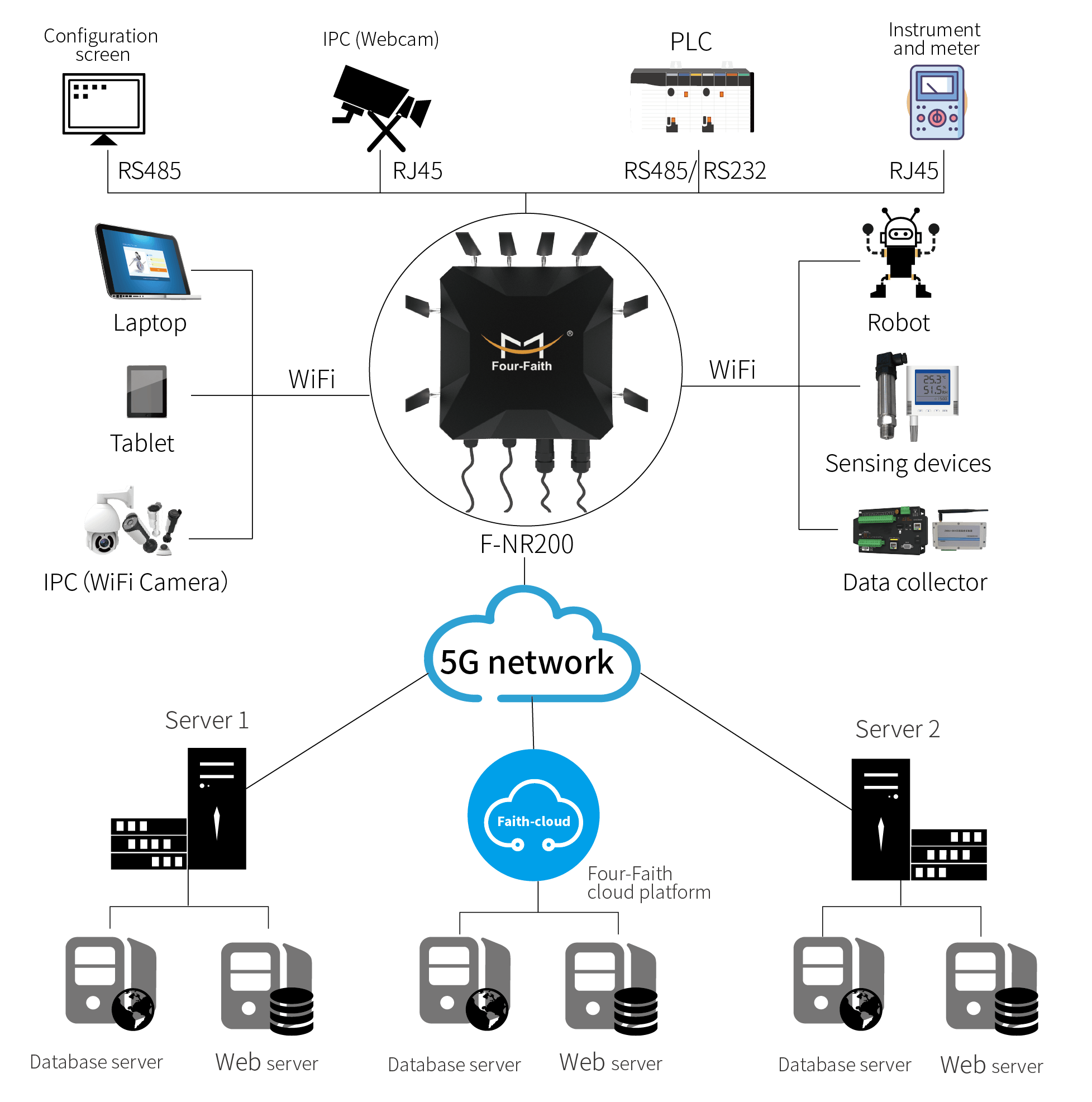

Four-Faith 5G CPE F-NR200 using a high-performance industrial-grade 32-bit communication processor and industrial-grade wireless module and takes an embedded real-time operating system as a software support platform. F-NR200 provides 1 RS232 and 1 RS485, 1 Gigabit Ethernet LAN, 1 Gigabit Ethernet WAN, 1 Gigabit optical fiber interface, and support WIFI function to achieve transparent data transmission and routing function.


● 5G CPE supports NSA and SA networks, compatible with all operators.

● Support 5G/4G, wired (optical fiber and WAN) intelligent switching.

● Support POE (802.3AF) power supply.

● Support dual-band WIFI (2.4G and 5.8G).

● Support local data storage to ensure that data is not lost.

● Full industrial design, protection grade IP68.

● Support IPV6/IPV4.



Weixin Image_20230914120646
  • High-performance industrial-grade wireless module
  • High-performance industrial-grade 32-bit communication processor
  • Metal shell, protection grade IP68. Metal housing and system safety isolation
  • Wide power input DC 9~36V
Weixin Image_20230913175115
  • WDT Watchdog design to ensure system stability
  • Adopt a complete anti-drop mechanism to ensure that the data terminal is always online
  • Built-in 1.5KV electromagnetic isolation protection for Ethernet interface
  • RS232/RS485 interface power and data isolation, in line with CSA, UL and IEC standards
  • SIM/UIM card interface built-in 15KV ESD protection
  • Built-in reverse phase protection and over voltage protection for power interface
Weixin Image_20230913175128

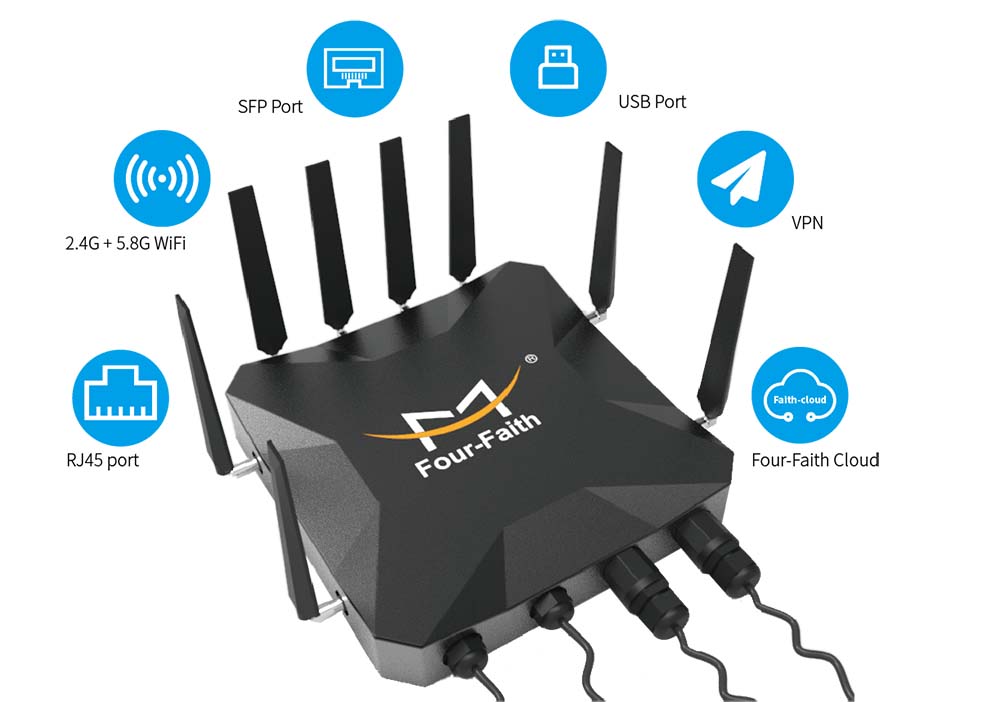

  • Standard RS232, RS485, Ethernet and WIFI Interface
  • Standard WAN port (support standard PPPOE protocol), which can be directlyconnected to ADSL equipment
  • Intelligent data terminal, can enter data transmission state after power on
  • Easy to use, flexible, multiple working mode options
  • Convenient system configuration and maintenance interface (WEB/CLI)
  • Support wall-mounted, pole-mounted installation
Ensure System Stability and Data Security

● WDT dual watchdog design, the system is more stable.
● Using complete anti-drop mechanism, data transmission is stable.
● 5G CPE support local data storage to ensure that data is never lost.
● Support power outage, disconnected transmission and data automatic retransmission to ensure data integrity.
● Support IPSec, GRE, PPTP, L2TP, OpenVPN and others methods
● 5G CPE support remote management,SYSLOG、SNMP、TELNET、SSHD,HTTPS
