32-Port Gigabit Managed PoE Switch

32-Port Gigabit Managed PoE Switch

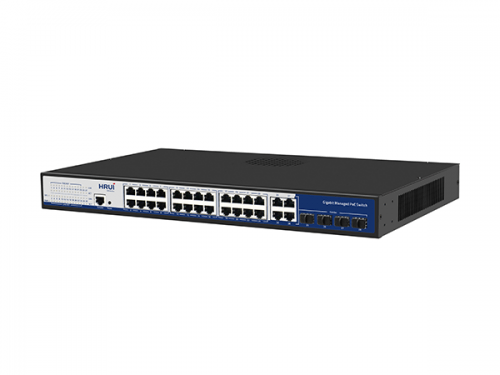

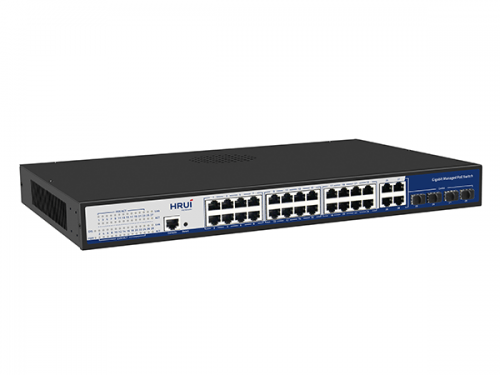

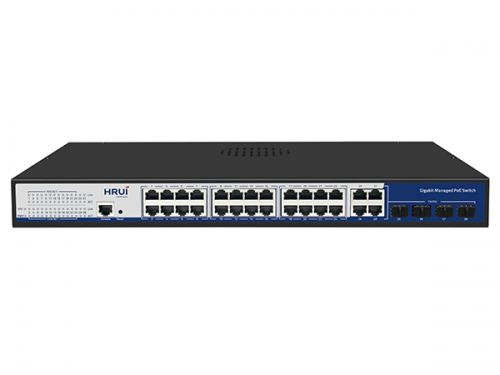

The HR-AFGM-2444S is a 32-port Gigabit managed PoE Ethernet switch, featuring 24 Gigabit PoE downlink ports, 4 Gigabit uplink ports (optical-electric multiplexing), 4 Gigabit uplink SFP optical ports (optical-electric multiplexing), and 1 Console port. It boasts a high total switching capacity of up to 192Gbps and supports a wide range of business functionalities, including routing, DHCP, VLAN, MAC address management, ACL access control, QoS, multicast, storm suppression, IPv4/IPv6, and more. With comprehensive and reliable security control policies and network protection mechanisms, it ensures the safety of network connections. The switch offers diverse management and maintenance methods, including Web, Telnet, CLI, SSH, making it a stable and dependable choice for access/aggregation layer switches. It finds wide application in small to medium-sized enterprises for high-security, high-intelligence access networks, as well as in video surveillance systems for enhanced security.


  • 24 Gigabit PoE ports + 4 Gigabit ports (optical-electric multiplexing) + 4 Gigabit SFP optical ports (optical-electric multiplexing) + 1 Console port
  • Total switching capacity of up to 192Gbps, with a packet forwarding rate of 41.66Mpps
  • Supports ring network functionality with rapid detection and self-healing capability, achieving ring network self-healing in ≤12ms
  • Layer 2 network management, supporting functions such as routing, DHCP, VLAN, MAC address management, ACL, QoS, and more
  • Features security control policies including 802.1X authentication, ARP intrusion detection, IP source protection, DoS protection, and others
  • Supports STP/RSTP/MSTP spanning tree protocols, dynamic/static link aggregation, and other network protection features
  • Provides network maintenance and management through WEB, TELNET, CLI, SSH, SNMP methods
  • Port protection: Common mode ≥6KV, electrostatic: contact discharge ≥8KV, air discharge ≥15KV


Compliant with IEEE standards including IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab.
Supports DHCP Server, QoS, ACL control, SNMP V1/V2/V3, IGMP Snooping v1/v2.
PoE features include watchdog, PoE port power supply, and power configuration, PoE time management.
Supports spanning tree protocols STP/RSTP/MSTP, ring detection, self-healing, remote loopback monitoring and control (802.3ah OAM).
Offers various VLAN divisions including MAC VLAN, protocol VLAN, Private VLAN.
Supports IP address + MAC address + VLAN + port binding, DHCP Snooping, IP source, and DAI protection.
Management options include WEB, TELNET, CLI, SSH, SNMP, RMON.
Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w).
Lightning protection: Common mode ≥4KV, electrostatic: contact discharge ≥6KV, air discharge ≥8KV.
